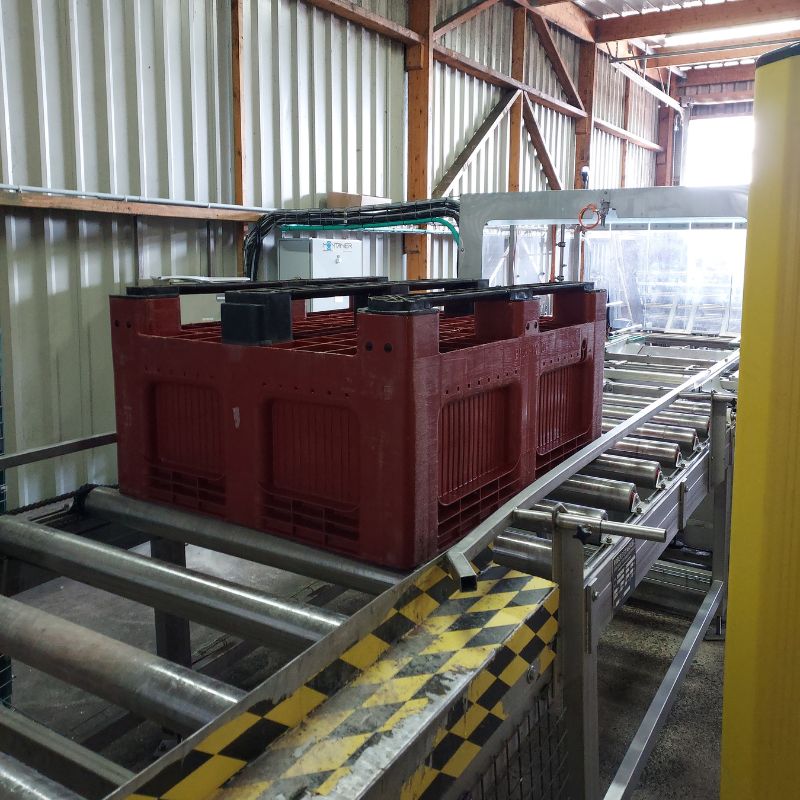

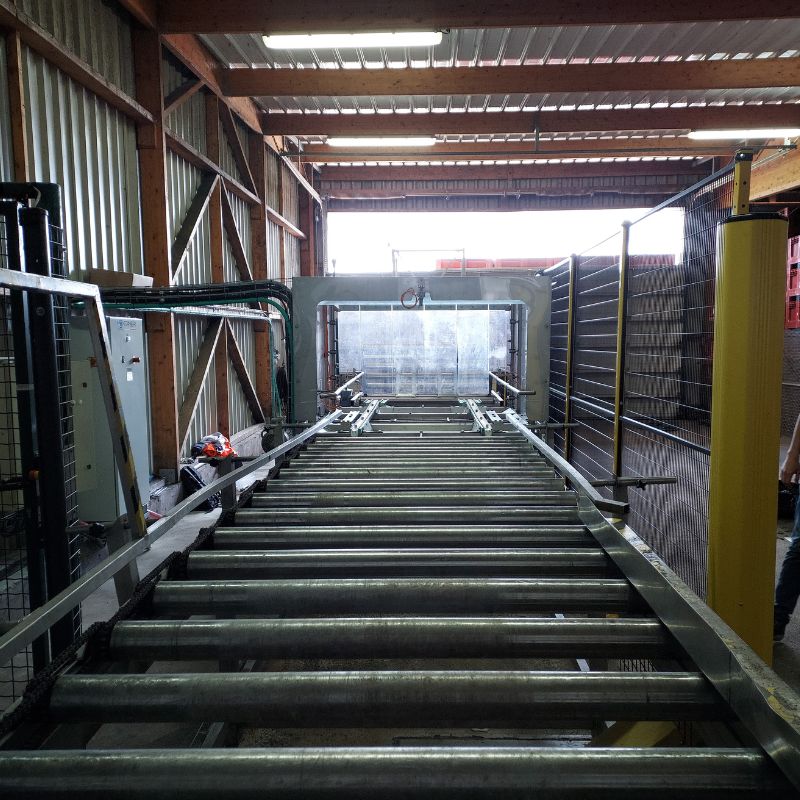

Equipment designed for cleaning and disinfecting plastic pallet boxes. Suitable for high-speed rinsing and internal and external washing of equipment.
Wash water treatment and recycling:
For the TERRA-PALOX model: No
For the TERRA-PALOX-R model: Yes
Bactericidal product dosing pump:
For the TERRA-PALOX model: No
For the TERRA-PALOX-R model: Yes
- Technical specifications
| Model | TERRA-PALOX | TERRA-PALOX-R |
|---|---|---|
| Energy | 400V+N+T – 32 kW | 400V+N+T – 40 kW |
| MAXIMUM flow rate | 80 L/min | 80 L/min |
| Pressure | 100 Bar | 100 Bar |
| Dimensions (L x W x H) |
2250 x 1500 x 2000 mm | 2250 x 1500 x 2000 mm |
| Maximum Gross Vehicle Weight | 300 kg | 950 kg |
| Standard lead times | 14 weeks | 14 weeks |
- Key points
Allows for rinsing or washing the inside and outside of your plastic pallet boxes. Filters and recycles wastewater, and injects bactericidal product via a dosing pump.
Welded steel frame and 304L stainless steel water collection tank. Dedicated technical skid accessible under the washer. Plexiglass splash guard.
High-pressure volumetric pump, bypass and stainless steel safety valve. A rotating wash arch for interior washing and a second fixed arch for exterior washing.
Waterproof control box for selecting operating modes and housing electrical safety devices.
Options: 316L stainless steel, gravity conveyor at inlet and outlet, compressor for frost protection.
